Specifications

General information

Cap-Base	PGJX50  [ PGJX50]
Operating Position	UNIVERSAL  [ Any or Universal (U)]
Main Application	Entertainment

Life to 50% Failures (Nom)	750 h
System Description	FastFit

Light technical

Color Code	2
Luminous Flux (Nom)	48000 lm
Chromaticity Coordinate X (Nom)	298
Chromaticity Coordinate Y (Nom)	322

Correlated Color Temperature (Nom)	7500 K
Luminous Efficacy (rated) (Nom)	68 lm/W
Color Rendering Index (Nom)	73

Operating and electrical

Power (Nom)	700 W
Lamp Current (Nom)	10.2 A

Ignition Supply Voltage (Min)

198 V

Controls and dimming

Dimmable

Yes

Mechanical and housing

Cap-Base Information

PGJX50

Luminaire design requirements

Bulb Temperature (Max)	950 °C
Pinch Temperature (Max)	500 °C

Pinch Temperature (Max)-DUP(do not use)

500 °C

Product data

Full product code	872790090850300

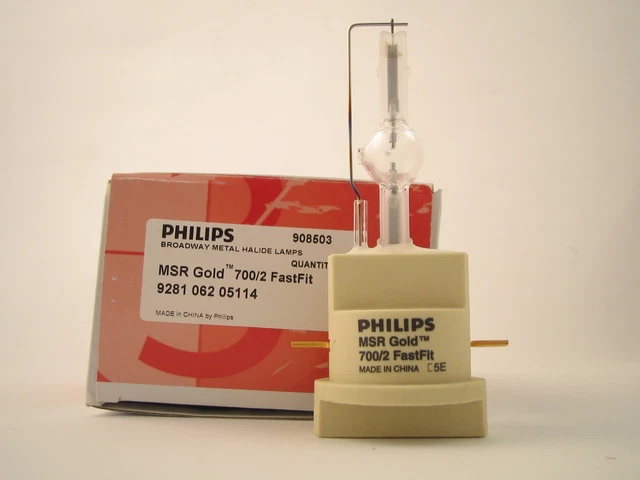

Order product name	MSR Gold™ 700/2 FastFit 1CT/8
EAN/UPC - Product	8727900908503
Order code	928106205114
Numerator - Quantity Per Pack	1

Local code description	MSR Gold 700/2 FastFit 1CT/8
Numerator - Packs per outer box	8
Material Nr. (12NC)	928106205114
Net Weight (Piece)	0.100 kg
